Invader Raft L Invader Raft L Invader Raft L

ACTION AND ADRENALINE

Invader Raft L

You are here
Products  /  Inflatable boats  /  Rafting/Groups  /  Invader Raft L

ACTION AND ADRENALINE

Highest air pressure, highest stability

The INVADER carries over every whitewater! The bow and stern are not fragmented, but bent harmoniously round. The raft behaves noticeably more agile, is more comfortable controllable and glides better over waves. Extremely robust for years in use, also suitable as a lifeboat, for water sports centers and clubs or competition organizers. The maximum security for passengers and guides – and the best choice for your rafting company!

The boat

Robust and safe

Double & replaceable boat-skin: A second boat-skin, which reinforces the raft at the external side tubes and along the bottom, allows it to withstand impacts against rocks or ground contact under heavy loads. The double boat-skin can be replaced if worn.
Absolutely safe and extremely durable!

All-round safety

An ingenious difference that is included as standard: the continuous safety-bulkheads. In the event of damage, the boat retains air along its entire length and does not sink neither to the front nor to the rear. You can continue your journey safely.

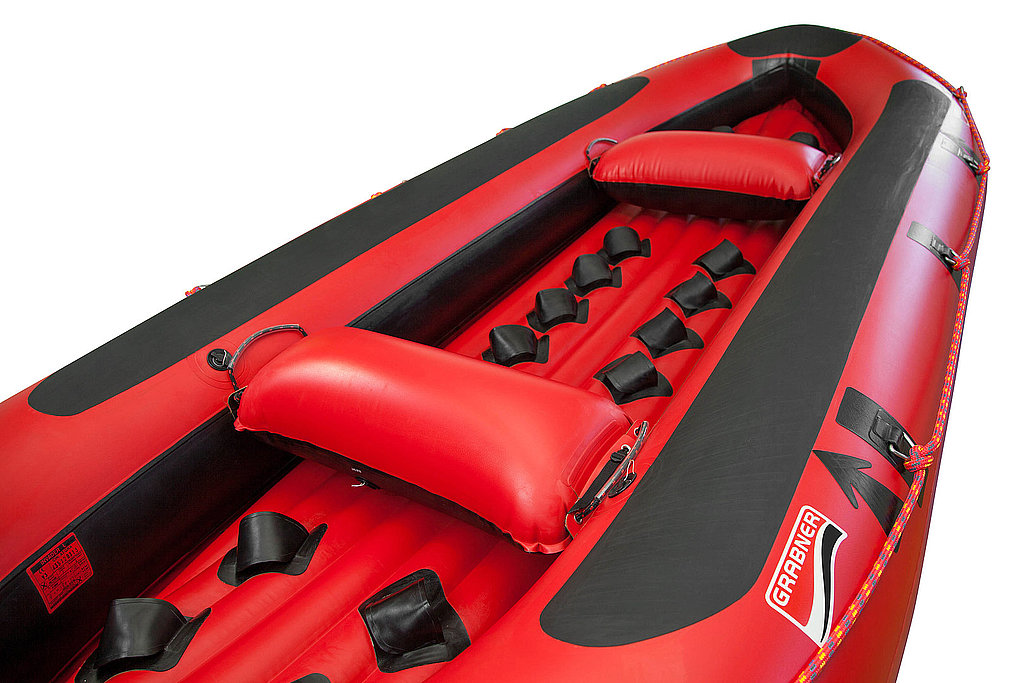

Stabilising rolls

Two inflatable rolls add incredible stiffness to the raft.

Safe seats

The anti-slip seat-covering on the side tubes increases passenger safety.

Quick bailing-holes

For optimum drain: The bailing-holes along the bottom sides of the boat ensure that splashed water is drained off quickly.

Strong throughout

The thick circumferential line, which is used to hold and carry the raft, is attached to sturdy triangular brackets.
The large bow and stern handles are used to carry and tie the raft.

More safety

The basic equipment of the boat includes everything you need for rafting. Additional, individual safety equipment is optionally available.

  • Narrow conical foot-caps provide good grip for your feet. Their special shape prevents your feet from getting stuck by mistake or slipping through.
  • The boarding handles on the right and left ends of the seatrolls make it easy to pull yourself up from the water into the boat.
  • Entry arrow markings help you find the boarding handles.

INVADER - Available in 3 sizes

 390 cm  for   6 passengers + 1 guide =   7 persons
 440 cm  for   8 passengers + 1 guide =   9 persons
 490 cm   for 10 passengers + 1 guide = 11 persons



Pictures & Videos

Rafting on river Salza in the Austrian Alps, adrenalin pure!

By clicking on the play button, you allow us to load external content from Youtube

Technical data

Overall Length x Width 490 x 212 cm 16' 0" x 6' 11"
Inside Length x Width 410 x 100 cm 13' 5" x 39"
Hose diameter 56 cm 22"
Weight 67 kg 148 lbs
Pack size L x W x H 120 x 60 x 35 cm 47" x 24" x 14"
Persons max. 11 11
Payload 2050 kg 4519 lbs
Air Chambers 7 7
Assembly Time 30 min 30 min
Operating Pressure 0.3 bar 4.3 psi
Material 1100 dtex EPDM-Kautschuk 1100 dtex EPDM-Kautschuk
White water category 6 6
ISO Standard ISO EN 6185 cat. I ISO EN 6185 cat. I
Design Category C C
Colour red-black red-black
Still Waters
Rivers
White water
Capsize stability
Get in the water

Standard equipment

Included in delivery:

  • 7 safety valves
  • 3 pressure relief valves
  • 2 seat rolls
  • 4 seat roll fittings
  • 12 stainlesss steel triangles
  • 1 safety- and carrying line
  • 2 carrying handles
  • 1 specification label
  • 1 repair kit
  • 1 valve key
  • 1 air-valve adapter bayonet
  • 1 owners manual with declaration of confirmity

Downloads

Owners manual - Operating instructions
Download
Your new boat in just a few steps
INVADER RAFT L
This item is not available at the moment! Price on request via e-mail: grabner@grabner.com
