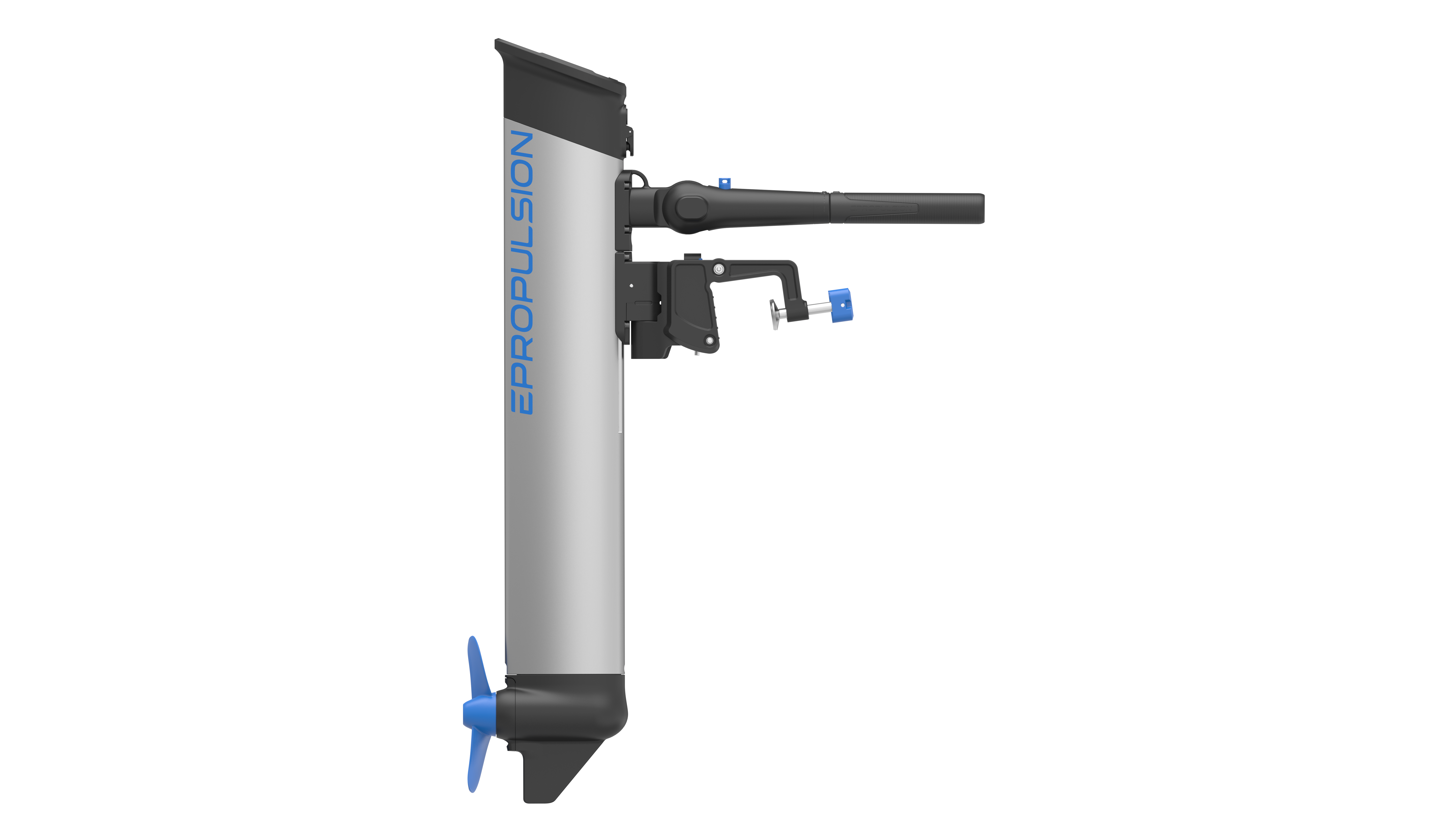

The revolution with 500 W power and a total weight of only 6.7 kg.

This electric motor is not only lightweight, easy to operate and quick to install, but can also be used individually and variably with the integrated battery and height-adjustable rear bracket.

Fuel propelled engines are restricted entirely or at certain times from operation on some waters. Those waters are open though, only for the use of electric motors.

Max. speed depends on type of boat up to 7.5 km/h.
Max. runtime depends on type of boat and speed up to 3.5 houres.

For GRABNER boats:
SPEED, MUSTANG S, MUSTANG, MUSTANG GT with standard supplied transom

ATTENTION SHIPPING:
This item can not be sent by air (due to dangerous goods regulations). The shipping costs therefore apply only to the land / sea route. For air freight, much higher shipping costs apply, which can be communicated to the order after receipt of the order.

For shipping by land, a dangerous goods rate of EUR 69, – is added to the shipping costs.

Note: Shipping by forwarding agent

1.099,00 EUR
- +
  • Product description
  • Technical data

Safe and reliable

  • Intelligent battery management system for energy-efficient operation and longer battery life
  • USB-C output for charging and powering other electrical devices
  • Supports multiple charging options (220V AC as standard and 12V DC)
  • Waterproof IP67

Without disconnecting electrical connections, the motor can be attached and removed with a click.

The tiller with anti-slip surface is extendable and adjustable in angle.

The motor can be tilted by 75° for stowing or beach landing and there are 3 trim angles and the anti-grounding automatically tilts the motor upwards in case of grounding.

The digital display shows battery level, power, system status and warnings. Use the button to select the mode and switch the main display between power and battery level.

Scope of delivery

  • Motor
  • Tiller
  • 220V charger
  • Carrying bag

PERFORMANCE

full throttlehalf throttle
(ca. 300 watt)
slow
(ca. 100 watt)
7.5 km/h6.3 km/h4.5 km/h
0:40 h1:08 h3:24 h

Speed and travel time depend on the type of boat, total weight, wind and waves.

Input power500 Watt
Max. input power (sport mode: more power for a short time at the touch of a button)750 Watt
Nominal voltage25,2 V DC
Battery power378 Wh
Maximum propeller speed1,500 bis 1,700 rpm
Max. Running time3 h 30 min
Trim device8° 17° 26° / 75°
Working temperature-5 up to 55 °C
Storage temperature-20 up to 45 °C
For transomup to 38 cm
Dimensions29.7x7.5x89 cm
Motor weight6.7
Protection class IP67yes
